How to Use a Digital Multimeter? A Beginner's Guide for Students
If a fan suddenly stops working, how does a repair technician figure out whether the problem is the switch, the wire, or the motor without taking everything apart? The answer fits in one hand.
It's called a digital multimeter, or DMM, and once you know how to use it, a broken circuit stops being a mystery and starts being a question you can actually answer.
The Man Who Built One Tool to Replace Three
- Many years ago, engineers carried three separate instruments to measure voltage, current, and resistance.
- In 1923, British engineer Donald Macadie combined all three into a single instrument called the AVOmeter.
- Today's DMM is based on the same idea, but with a digital display that's easier to read and use.
One Meter, Four Questions
| Measurement | Symbol | How to Connect? |
|---|---|---|
| Voltage | V or DCV | Connect across the component |
| Current | A or mA | Connect in series with the circuit |
| Resistance | Ω | Remove the component and switch off the power |
| Continuity | •))) | Switch off the power to check if the path is complete |

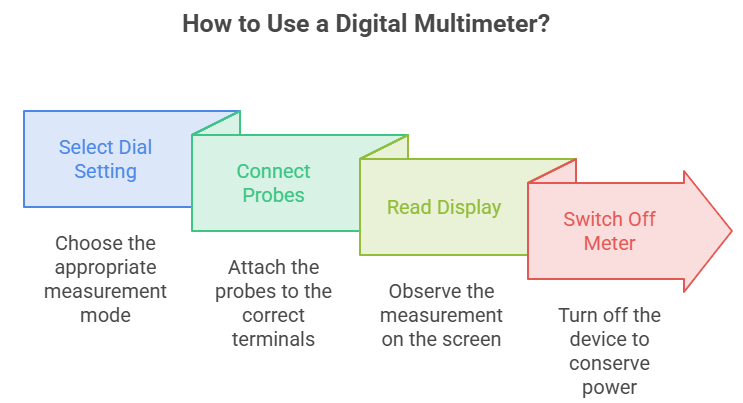

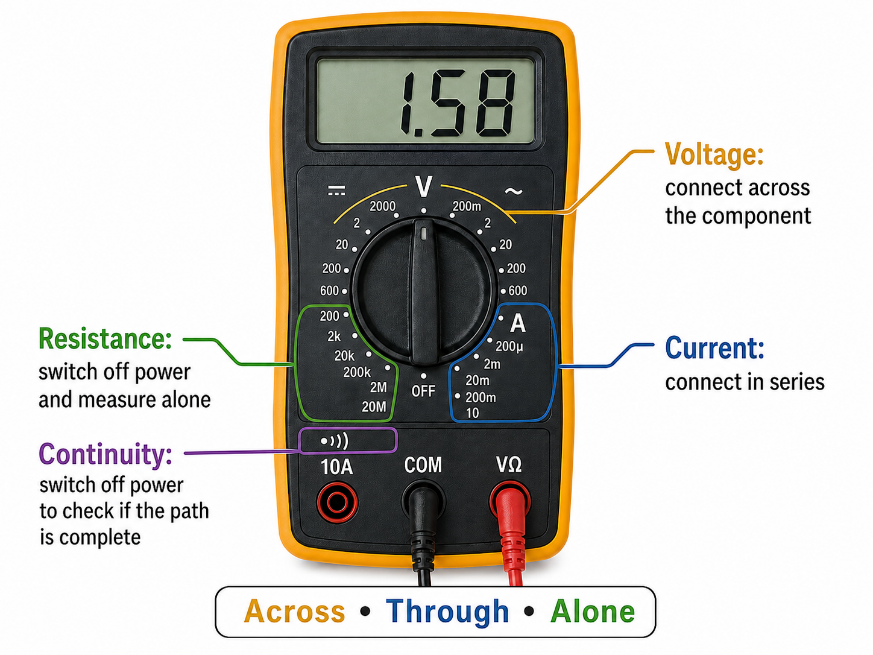

When using a digital multimeter, remember this simple rule Across, Through, Alone. Voltage is measured across, current is measured through, and resistance is measured alone.
One Simple Safety Rule
One of the most common mistakes is using the wrong dial setting. If the multimeter is set to current mode and connected directly across a battery, it can create a short circuit and blow the meter's internal fuse.
That's why it's always important to check the dial before taking a measurement. Engineers even joke that once the meter's "magic smoke" escapes, it stops working. It's only a joke, but it's a fun reminder to use the multimeter carefully.
What Students Discover with a Digital Multimeter?
One of the most interesting things about using a multimeter is comparing what you expect with what you actually measure.
Some interesting observations include:
- A 1.5V battery may read around 1.58VÂ when it's new.
- A continuity test can quickly identify a broken wire, even if the wire looks perfectly fine from the outside.
- Small measurements often reveal problems that aren't visible to the eye.
The lesson:
“Always double-check the dial before touching anything.”
A Tool Used Everywhere
The multimeter is not just a tool. Every electrician in India carries one in their tool pouch. A mobile repair technician uses a digital multimeter to test a charging cable in seconds. A two-wheeler mechanic checks the battery voltage before diagnosing any starting problem.
Learning Multimeter Basics helps students understand how these devices work, while Simple Science Experiments make these concepts easier to explore and understand.
